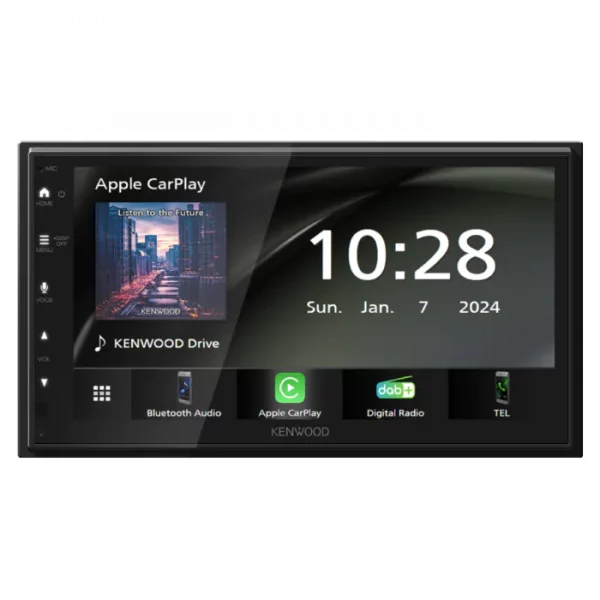

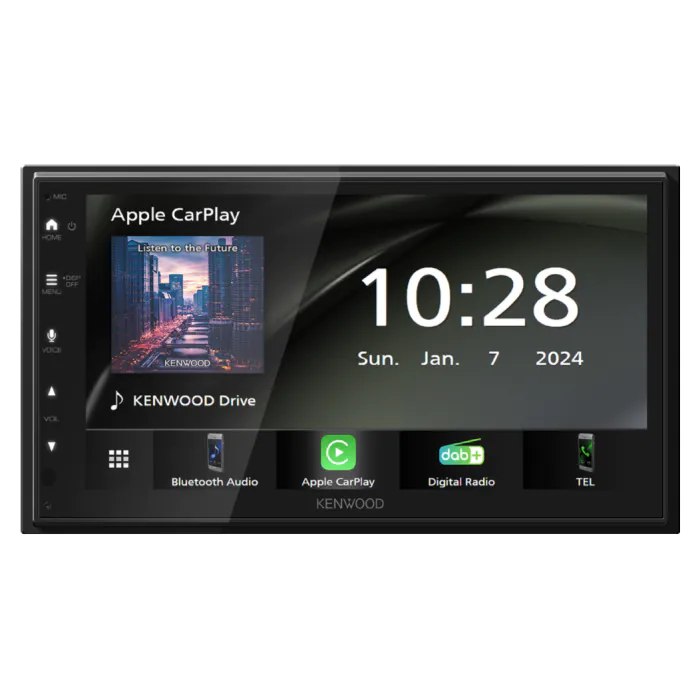

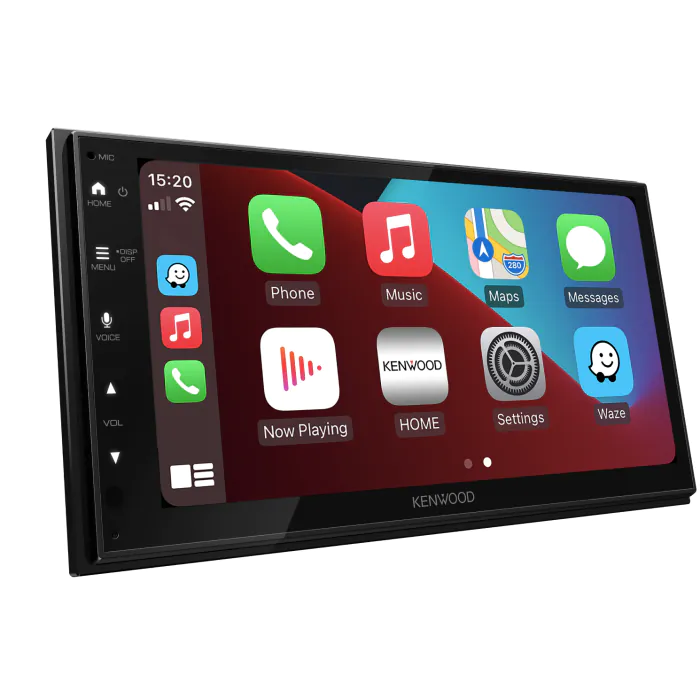

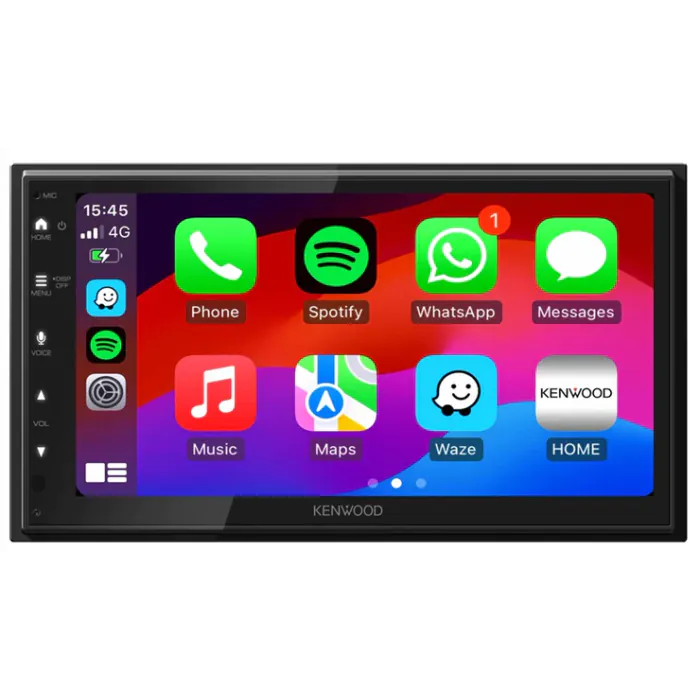

Kenwood DMX5023DABS – 6.8” Wired CarPlay Android Auto Mirroring, DAB Screen + Wireless Adaptor

Name: Kenwood DMX5023DABS - 6.8” Wired CarPlay Android Auto Mirroring, DAB Screen + Wireless Adaptor
SKU: DMX5023DABS+WUA-8
Availability: InStock

£299.99

SKU: DMX5023DABS+WUA-8 Categories: Screen Stereos, Stereo/Screens

Description

6.8” Wired Apple CarPlay, Android Auto, Apple/Android Mirroring, DAB+ radio Multimedia System

Text

Features

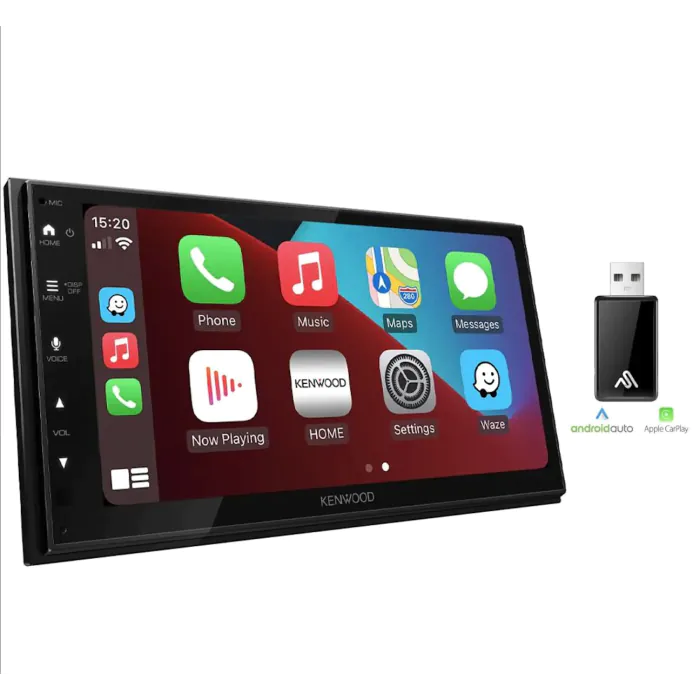

LIMITED OFFER - FREE Wireless Adaptor for CarPlay & Android Auto

Key Features

6.8 inch WSVGA Capacitive Touch Screen
White Key Illumination
Enhanced GUI & Graphics
Enhanced Smartphone Connections:
Wired Apple CarPlay
Wired Android Auto
Wired iPhone & Android Auto USB Mirroring
Built-in Bluetooth technology
DAB+ Digital Radio Tuner / FM (RDS) / AM tuner
High Speed USB Input - 2.1A
Full HD Video File Format Playback
Rear Camera Input
AV Input
Video Output
13-Band Graphic Equaliser
Digital Time Alignment
Front, Rear Subwoofer Pre-outs - 2.5V
Steering Wheel Remote Interface ready
Wireless Remote ready
Single DIN Short Chassis Design

Monitor Features:

6.80” WVGA (1024 x 600px) with Clear Capacitive Touch Screen
Protective Film with Anti-Fingerprint
White key illumination
Fixed Panel
3 Display Mode: Full(Initial) / Auto(Full/Normal) / Normal
Screen adjustments: Brightness, tint, colour, contrast and Backlight
Dimmer sensor: Manual / Sync & Dimmer level control (Auto/On/Off)
NTSC / PAL judge (Auto)
Display OFF mode

Graphical User Interface (GUI):

Demonstration Mode (default ON)
Home screen, 4 Top SRC keys are customisable
Wallpaper customizable (6 presets + 2 user set)
Text scroll
Rear view camera interrupt with parking guide lines & caution on screen
Visual source mode: Mirroring / CarPlay / Android Auto
Selection of 14 languages for menu & text:
English UK(default) English US, Spanish, French, German, Italian, Dutch, Russian,
Portuguese, Hebrew, Greek, Polish, Czech and Hungarian

Tuner Features:

FM / AM(LW/MW) radio / 24 x FM and 12x AM Presets
RDS / EON / Radio text plus / PTY / Local seek / Traffic information.
Manual/Auto memory entry.
Auto1/Auto2/Manual tuning mode/seek mode / Seek/scan up/down.

▼DAB+ tuner Features:

DAB+ (Band III) tuner / 15 presets
DAB-DAB / DAB-FM Auto Switch / Seamless DAB-FM blending
Traffic information / PTY search / PTY watch / ASW select
Alphabet / Intelligent search / DLS (Dynamic label) / Slide Show / Softlink
Audio Format: MPEG1 Audio Layer II, MPEG4 HE-AAC-v2

Bluetooth features:

High quality wide-band Hands-free speech (HFP V1.7)
High quality microphone built-in
Private mode
Interrupt call request
Audio streaming (A2DP V1.2) with AAC / SBC codec support
Music library browsing (AVRCP V1.6)
Album artwork display
Accessible phonebook entries (PBAP) with alphabet search (English / Hebrew)
Secure Simple Pairing (SSP)
Auto pairing via USB (iPhone & Android)
Optimised Noise & Echo canceller

USB Input Features:

High speed type-A USB port / FAT16/32 NTFS/exFAT
Max. 2.1A quick charge for selected phones (BC 1.2 compatible)
Mass storage class
Tag information display / Album art display / Time code display
List access / Category search and Link search
Folder or All random play / Folder, File or Repeat All play / Skip
Drive change / Last position/resume play

Supported CODEC’s (USB):

Audio: MP3 / WMA / AAC / WAV / FLAC
Video: MPEG1 / MPEG2 / MPEG4 / H.264 / WMV / MKV
Pictures (for user Wallpaper): JPEG / PNG / BMP

Android Features:

Works with Android Auto™ via USB
USB mirroring for Android with 'MirrorApp+' smartphone app
Music playback via Bluetooth

Apple CarPlay/iPhone Features:

Made for iPhone.
Works with Apple CarPlay™ (via USB)
USB mirroring for iPhone with 'MirrorApp+' smartphone app

Audio Features:

50W x 4 Max power output / 22W x 4 RMS
2 RCA pre-outs (Front & rear) + Subwoofer (mono) with 2,5V Preout level
Reverse with Attenuator (-20dB) / Mute
Beep On / Off (default)
Balance & Fader control
Volume offset for each source
Built-in amplifier Off

Digital Sound Processor (DSP):

Digital Time alignment (DTA): Position control + 4 presets, Position Room Size
13-Band graphic equaliser: 7 presets, 3 user set for each source
High-pass filter / Low-pass filter.
Subwoofer Phase Control (Normal/Reverse) / X’over
Speaker size control: Front/Rear/Subwoofer
Channel level control / Bass Boost & Loudness control / Tweeter Volume

Video Features:

AV-out: Available Source: USB
Rear Camera Input (NTSC/PAL auto Switching)

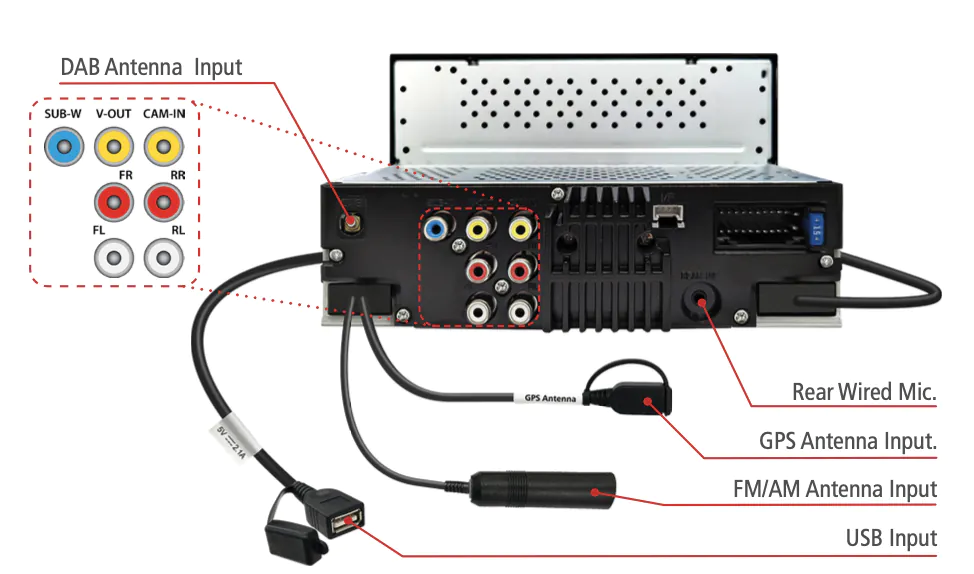

Connectivity:

Third-party Wired Steering Remote Interface ready. (Optional interface required)
Learning Steering Remote (RESISTIVE protocols only!)
Rear view camera input (RCA)
Video-out (RCA)
Rear USB2.0 (pigtail 1m cable)
2 RCA pre-outs (Front & rear) + Subwoofer (mono)
FM/AM antenna input ( JASO)
DAB antenna input (SMB)
22 Pin Molex Connector:
Power Antenna Control • Power Control (P-Cont) • Illumination/Dimmer Wire
Wired Remote Wire • Reverse sensor wire • Parking brake sensor wire

General Features

Optional IR remote controller: KNA-RCDV331
Firmware/software update via USB
Backup memory
Installation Dimensions (W×H×D): 182×112×86mm (with Sleeve)
Operating Voltage: 14.4V (10.5 – 16 V allowable)
Maximum Current Consumption: 15 A
Weight: 1,3kg

Accessories:

22Pin Molex Connector to ISO Connector lead
GPS/Glonass antenna with mounting plate (3,5m cable)
Extension Parking Cable (2m)
2DIN Sleeve & Lever
1DIN adapter bracket set (pre-mounted)
Remover for Escutcheon (trim
