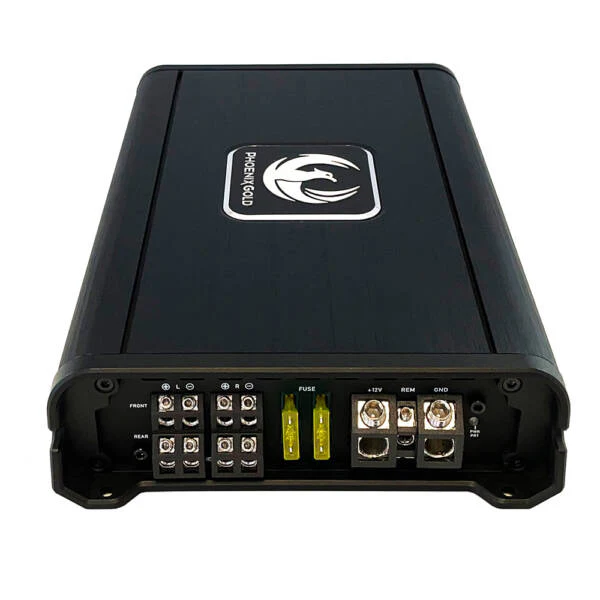

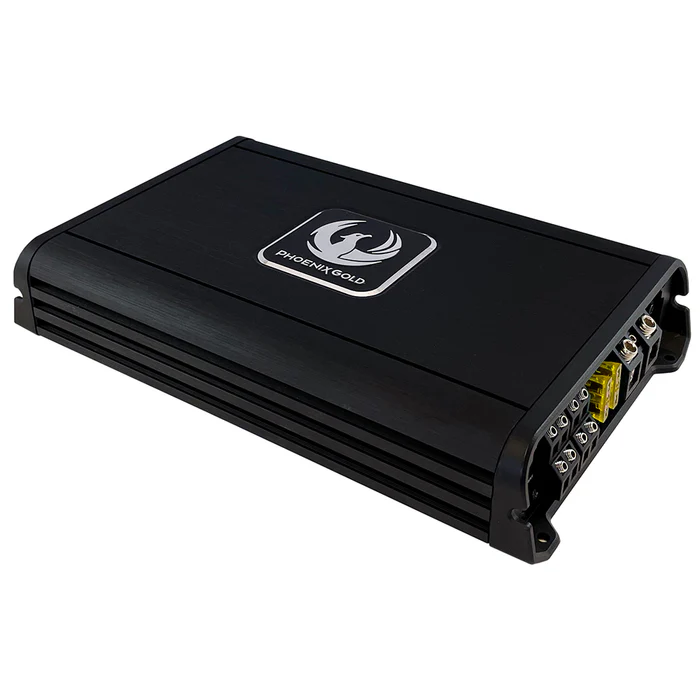

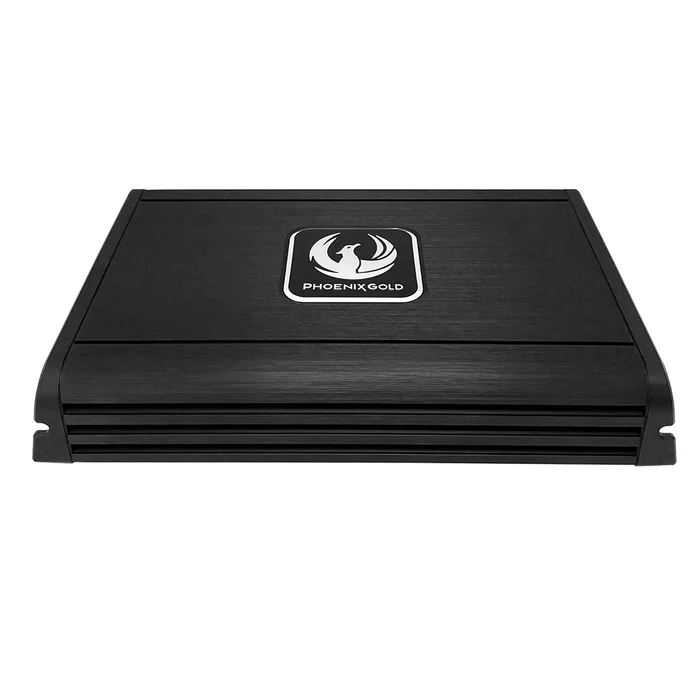

ZT6004R – 600W 4-Channel 24V Class-D Amplifier with Remote Gain Control
The ZT6004R packs serious performance into a compact, streamlined body. Built for clear, stable power delivery, this 600W 4-channel Class-D amplifier works well in tight installation spaces without compromising output. It now comes with a remote gain controller for easy adjustment.
Inside the unit is a carefully engineered circuit board designed for efficient power flow and reliable long-term performance. Its solid connection terminals help maintain clean signal transfer, making it a great choice for users who want strong audio performance even in limited space.
The amplifier provides impressive power ratings:
• 100W x 4 @ 4Ω
• 150W x 4 @ 2Ω
• 300W x 2 @ 4Ω (bridged)
Its Class-D platform offers strong efficiency, while the frequency range of 20Hz to 20kHz and a signal-to-noise ratio above 96dB help ensure a clean and detailed output.
With adjustable high-pass and low-pass filtering from 50Hz to 250Hz (12dB/octave), the ZT6004R allows flexible tuning for different system layouts. The input range of 0.2V to 10V also supports a wide variety of source units, making the amplifier suitable for compact vehicles, custom installs, and small studio setups.
ZT6004R Features
• High-level auto turn-on
• Compatible with OEM and aftermarket source units

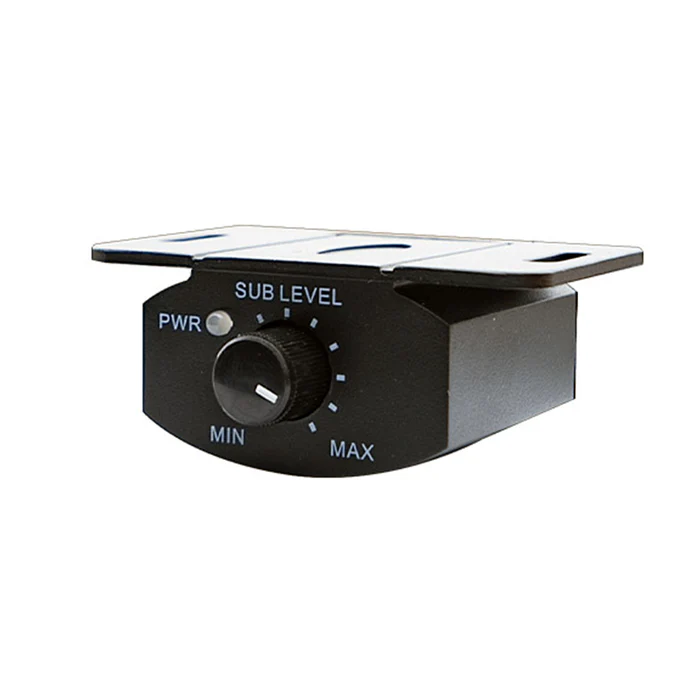

• Remote gain/bass control included (ZRBC)
• High-level and low-level input options
• Heavy-duty connector block for stable current delivery
• 4-way protection: thermal, reverse power, speaker polarity, and low-voltage safety
ZT6004R Specifications
-
Class: D
-
Channels: 4
-
Frequency Response: 12Hz – 22kHz
-
RMS @ 2Ω: 4 x 175W
-
RMS @ 4Ω: 4 x 105W / 2 x 350W bridged
-
Signal-to-Noise Ratio: -90dB
-
THD: <1%
-
LPF: 50Hz – 400Hz (12dB/oct)
-
HPF: 50Hz – 400Hz (12dB/oct)
-
Bass Boost @ 45Hz: 0 – +18dB
-
Crosstalk: -60dB
-
Input Sensitivity: 0.25V – 9.8V
-
Fuses: 2 x 20A
-
Remote Control: Included
-
High-level Input via RCA: Yes
-
Auto Turn-on: Yes
-
Operating Voltage: 20V – 32V
-
Idle Current: 0.55A
-
Max Current Draw: 34A
-
Efficiency @ 4Ω: 88%
-
Power Terminal: 20mm²
-
Speaker Terminal: 4mm²
-
Dimensions: 254 x 160 x 48.3mm
-
Weight: 1.76 kg
