MATCH UP X4BMW-CTR.3 – 4″ Coax PnP Centre Speaker, BMW & MINI | 4Ω
Product parameters
- Size: 100mm | 4″
- Driver Power | Watts RMS: 60
- Voice Coil x Impedance: 1 x 4Ω
- Type: Coaxial | 2 Way
- Sensitivity 2.83V/1m | dB: 93
- Installation Depth | mm: 38
- Car Specific: BMW
Description
Premium cars deserve premium sound – the basic speaker setup in BMW vehicles does not meet the expectations of ambitious music lovers in many cases.

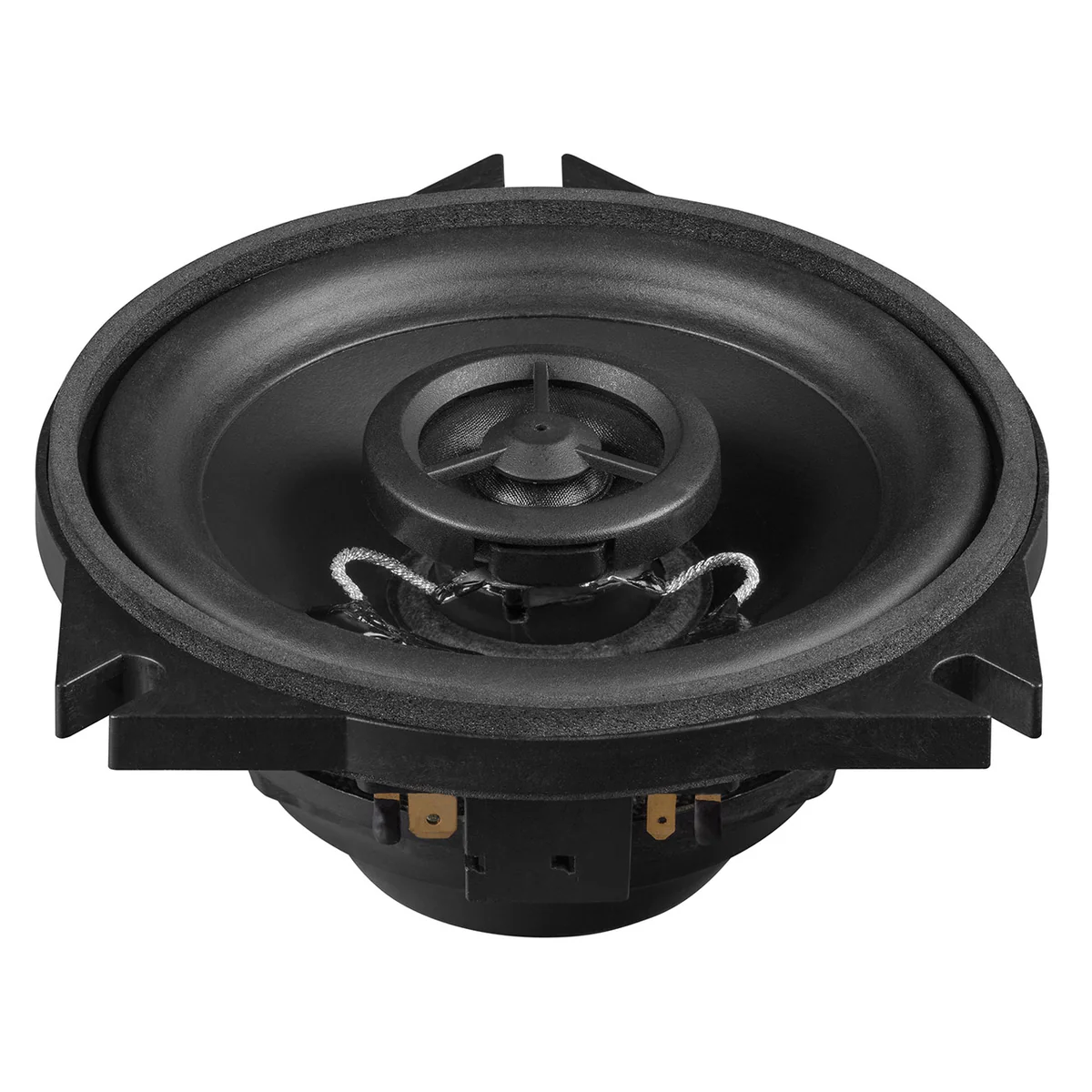

The 2-way center coaxial speaker system UP X4BMW-CTR.3 with car-specific basket provides a significantly improved sound staging for both driver and co-driver offering the same excellent tonal balance as the other MATCH UPGRADE speaker systems as well as a fantastic treble resolution thanks to its 13 mm silk dome tweeter. The result: a perfectly homogeneous sound image, which clearly outperforms the OEM speaker setup in terms of resolution, precision and dynamics.
Especially in combination with one of our DSP amplifiers with center management this speaker reveals its full potential in respect of dynamics.
- Exclusively developed speaker system for BMW vehicles
- Car-specific baskets and connectors for easiest installation
- Perfectly tuned coaxial system with optimized frequency response
- Including inline crossover for perfect operation with the OE radio
- Perfectly combinable with further MATCH UPGRADE components – e.g. DSP amplifier
| Power RMS / max. | 60 / 120 Watts |
| Frequency response | 100 Hz – 25,000 Hz |
| Impedance | 4 Ω |
| Efficiency 1 W / 1 m | 90 dB |
| Cone material | TW: Coated silk dome M: – W: Coated paper |
| Diameter TW / W | 100 mm / 16 mm; 4″ / 0.52″ |
| Crossover | TW: Integrated, 6 dB slope W: Separate, 6 dB slope |
| Installation diameter | 101.5 mm / 4.00″ |
| Installation depth | 37.8 mm / 1.50″ |
