MATCH PP-MQS – Mercedes Audi VW PnP Harness For MATCH Amplifiers | Molex
Product parameters
- Car Specific: Mercedes , VW , Seat , Škoda
- Application: For Amplifiers / DSP
- Type: Radio-Adapter
Description
Description

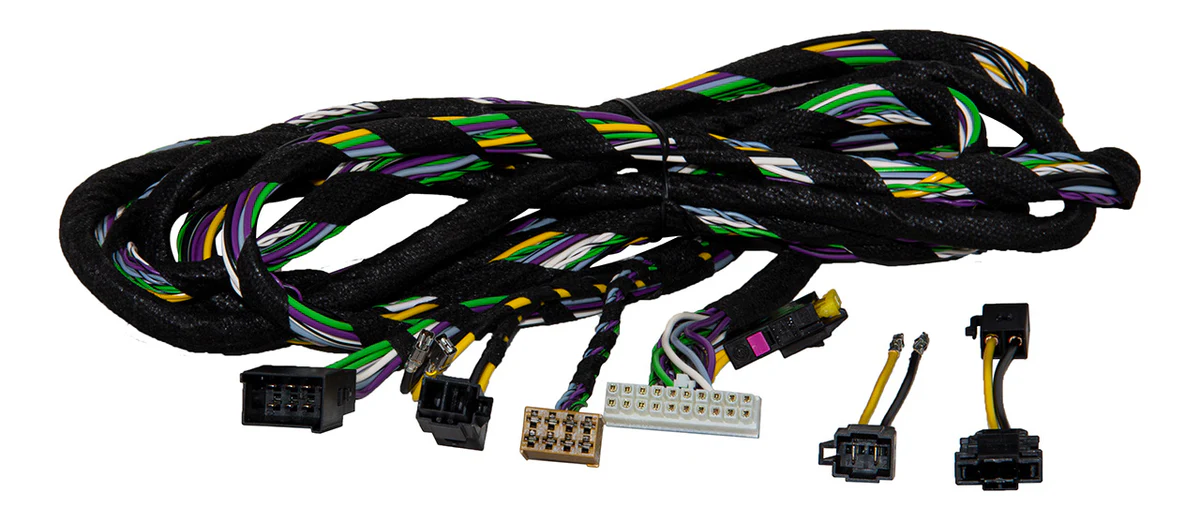

The modular Plug & Play cable harness PP-MQS is made for a space-saving connection of a MATCH amplifier with a 20-pole System Connector to an OEM head unit with a 52-pole Quadlock connection such as Mercedes, Volkswagen etc. For connecting the power supply of older 40-pole Quadlock systems (e.g. Power Quadlock) an additional adaptor is included in the delivery.
- Plug & Play plug connector for an easy connection of a MATCH amplifier with a 20-pole System Connector
- MQS connectors for signal pick-up/speaker feed
- Quadlock-connector for power supply
- Integrated fuse
- Cable harness length 1m / 2m / 5m
| Cable harness length | 1m / 2m / 5m |
| Connections | 1 x 1 x 20-pole MOLEX male connector for connecting a MATCH amplifier with System Connector input 1 x 8-pole MQS male connector for feeding the speakers 1 x 8-pole MQS female connector for signal pick up 1 x 2-pole male connector for connection to the power supply 2 x male connector for connection of the power supply |
