MATCH PP-MB 1.9BUR – Harness For MATCH UP 10DSP Amplifier To Fit Mercedes With Burmester (2014-2019)
Product parameters
- Car Specific: Mercedes
- Application: For Amplifiers / DSP
- Type: Harness
Description

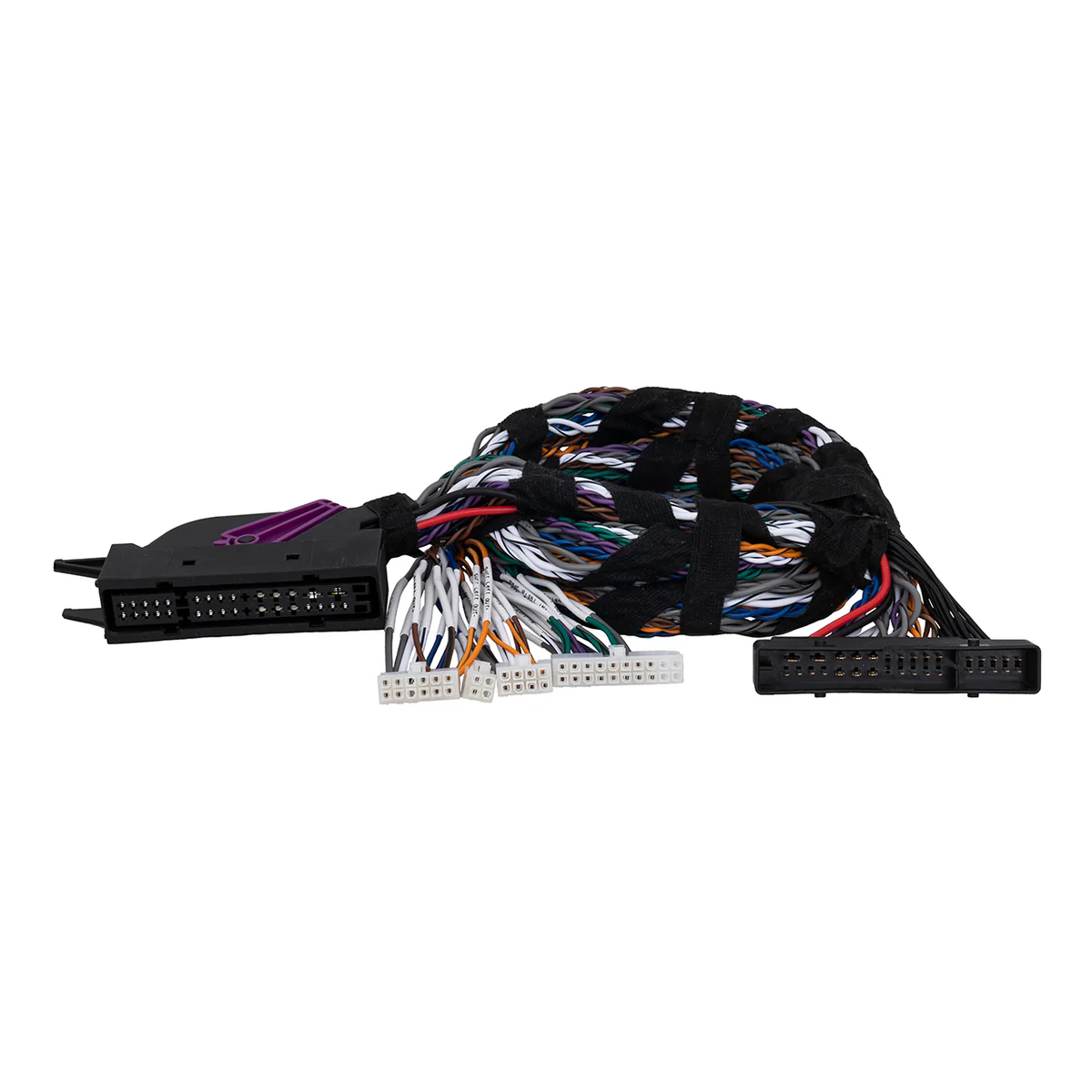

The 9-channel UPGRADE cable harness PP-MB 1.9BUR enables an easy connection of a MATCH UP 10DSP amplifier with integrated Extension Card MEC ANALOG IN to selected Mercedes vehicles with factory-installed Burmester sound systems – model year > 2014 and 9-channel Burmester sound system (13 speakers).
- Plug & Play connectors for an easy connection of a MATCH UP 10DSP amplifier with integrated MEC ANALOG IN module
- Mercedes system plugs for connecting the vehicle cable harness
- Cable length 1.00 meter
| Cable length |
1.00 Meter |
| Connections | 1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP

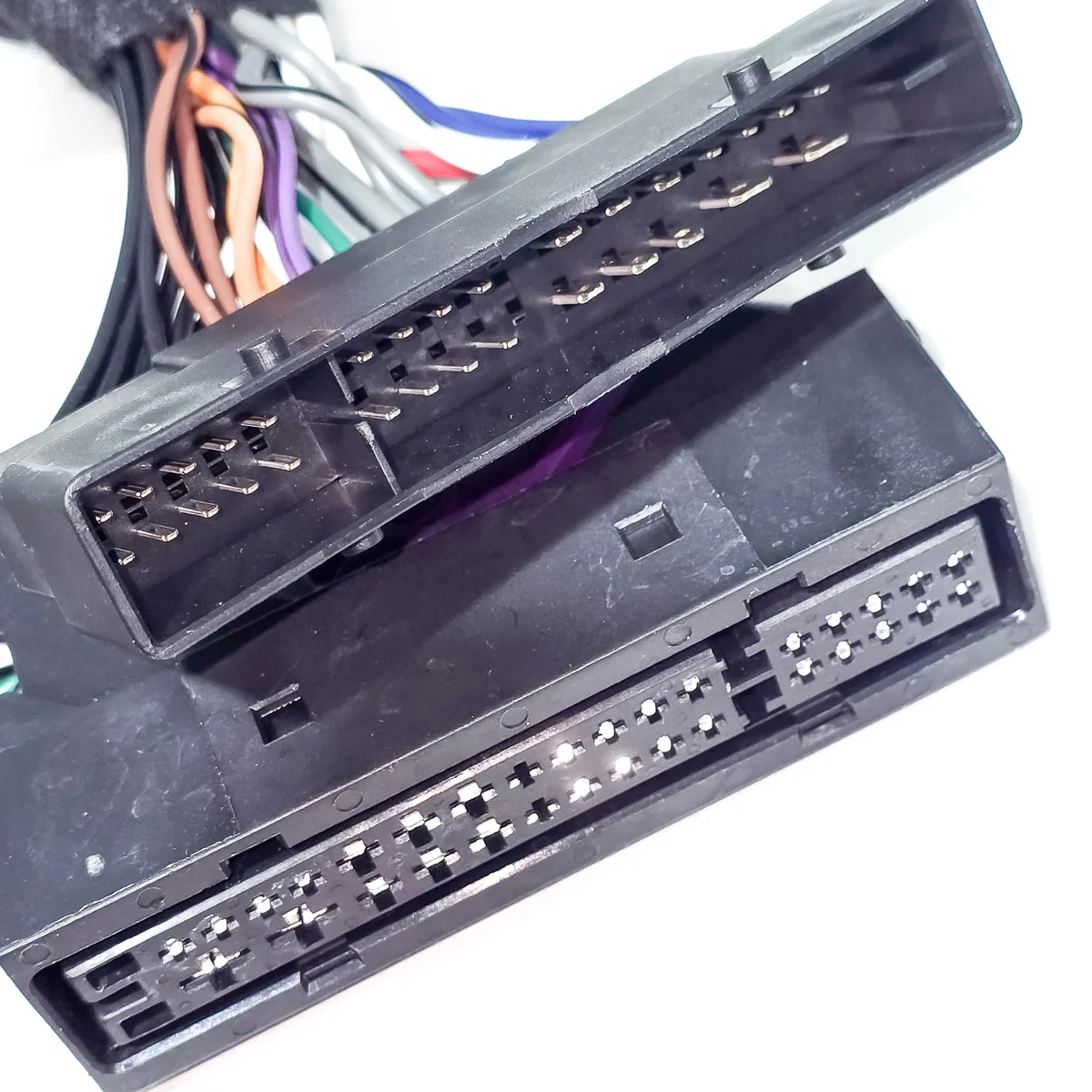

1 x 8-pole MOLEX plug for the connection of the high-level inputs E – H of the UP 10DSP 1 x 12-pole MOLEX plug for the connection of speaker outputs E – J of the UP 10DSP 1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module 1 x 32-pole Mercedes system jacket 1 x 32-pole Mercedes system plug |
Compatibility
For connection of the MATCH UP 10DSP with ANALOG IN Extension Card
Suitable for Mercedes vehicles from the model year 2014 with a 9-channel Burmester sound system
