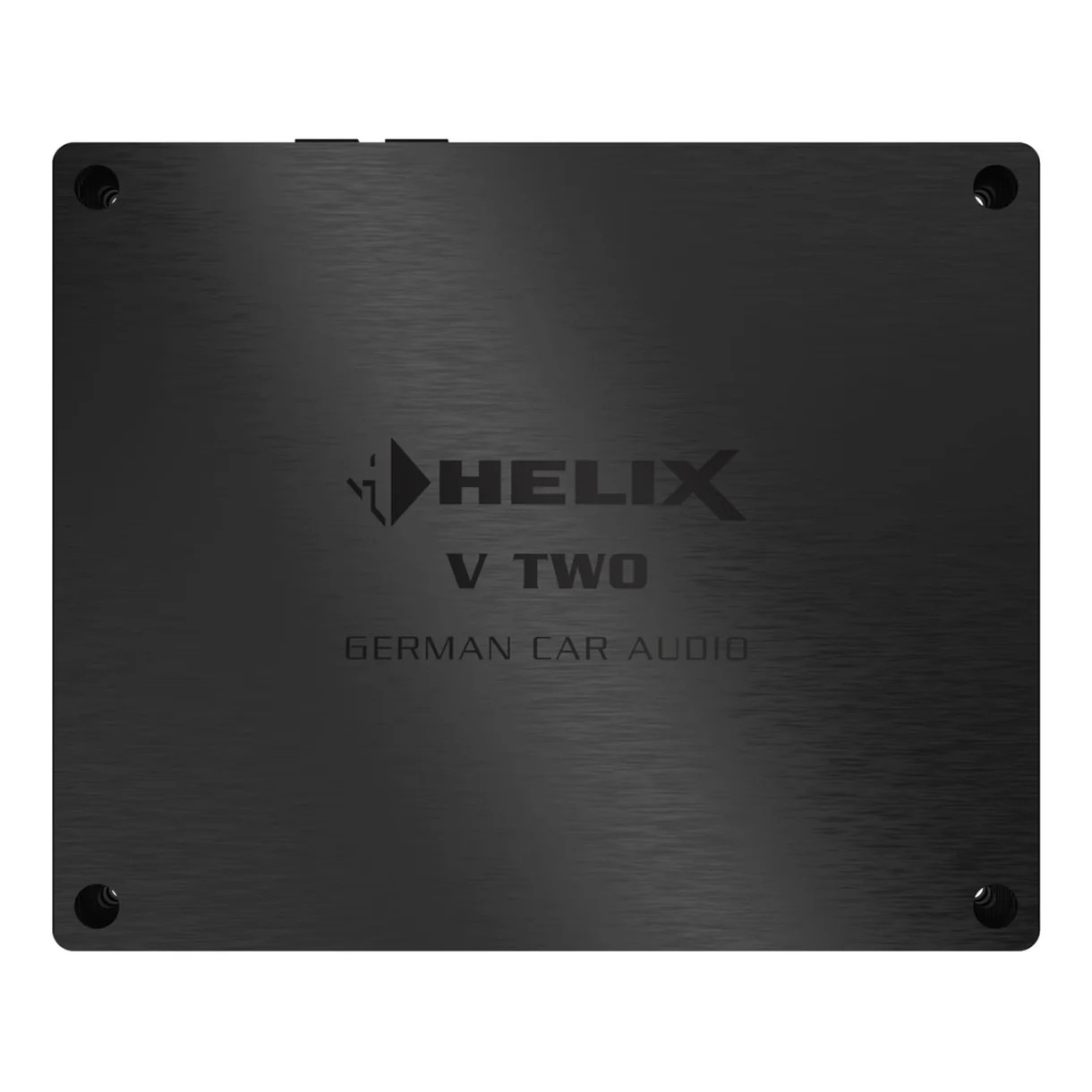

Helix Next V Two Bridgeable 2 Channel Amp with V-AMP Link Amplifier 800w RMS
£499.00
£499.00
The NEXT V TWO is a two-channel amplifier built for people who want strong output and clean sound in one compact unit. It uses an advanced Class D design that delivers high efficiency, low heat, and detailed audio with very low distortion. Its wide frequency range and excellent signal clarity make it suitable for both high-quality stereo systems and demanding subwoofer applications.
Because the channels can be bridged, you can configure the amplifier in different ways. Use it in stereo for strong midbass or full-range speakers, or switch it to mono mode when you need serious power for a subwoofer. If you want a small amplifier that performs like a high-end unit, this model fits perfectly.
• Modern Class D 2-channel design that combines clean sound with high efficiency
• Bridgeable channels for flexible setups and maximum output
• Up to 1000 W RMS bridged at 4 Ω, ideal for high-power subwoofers
• ACP (Amplifier Control Panel) for simple and accurate configuration, including:
– Automatic or manual gain control
– Input selection
– Input reference settings
• Auto Gain Ranging (AGR) that automatically sets the correct gain for the cleanest signal
• Manual gain steps from 0.5 V to 8 V for precise system matching
• V-AMP Link inputs for connecting HELIX V-Series amplifiers to boost subwoofer or speaker power
• DirectDSP input ensures the best signal quality when used with HELIX DSP systems
• MSM mode (Mono / Stereo Mode) for switching between stereo operation or a powerful single-channel configuration
• Stabilized Output Power (SOP) for consistent performance even when voltage fluctuates
• Intelligent power management designed to work reliably with modern vehicle electrical systems
• Start-stop ready, supporting voltages up to 18 V
• Auto Remote function for switching on the amplifier without a dedicated remote wire
• Compact size with low heat output due to highly efficient circuitry
With a noise rating above 109 dB, extremely low distortion values below 0.004%, and strong damping control, the NEXT V TWO delivers accurate and detailed sound even at high volumes.
In full-range stereo mode, it produces:
• 2 x 200 W RMS at 4 Ω
• 2 x 400 W RMS at 2 Ω
This is ideal for larger midbass drivers, high-output component speakers, or hybrid subwoofer setups.
In mono configuration, the amplifier delivers:
• 1 x 800 W RMS at 4 Ω bridged
This is perfect for high-performance subwoofers, including DVC2 or SVC2 models from the HELIX IMPACT series. Mono mode works smoothly with DSP systems that supply a summed subwoofer signal.
Part Number: NEXT V TWO
• 2 x 200 W @ 4 Ω
• 2 x 400 W @ 2 Ω
• Bridged: 1 x 800 W @ 4 Ω
Maximum Output (Typical Use)
• Up to 500 W RMS per channel @ 2 Ω
• Up to 1000 W RMS @ 4 Ω bridged
Technology
• Class D

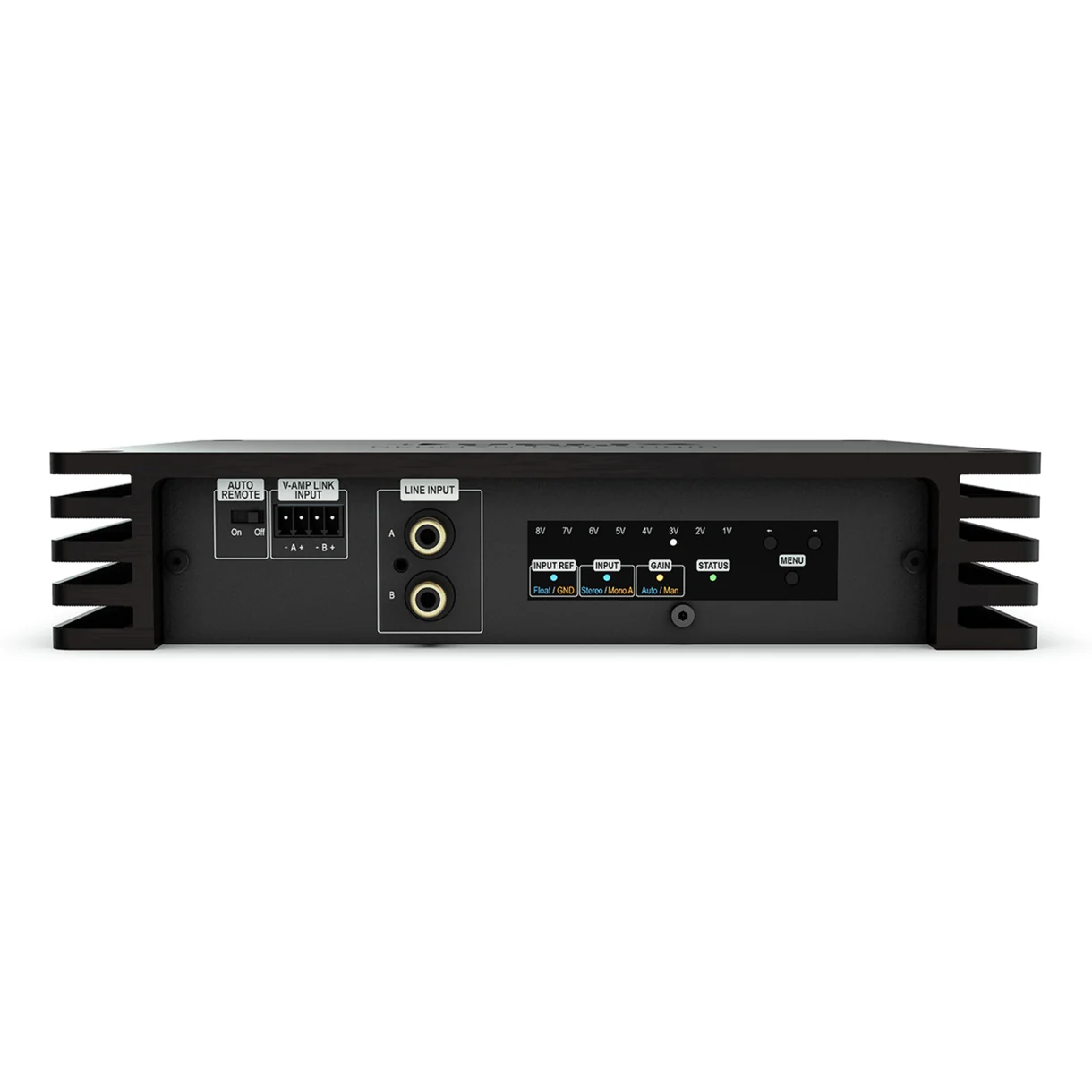

• 2 x RCA
• 2 x V-AMP Link
• 1 x Remote In
Input Sensitivity
• RCA: 0.5 – 8 V
• V-AMP Link: 1.5 – 21 V
Input Impedance
• RCA: 3 kΩ
• V-AMP Link: 13 Ω

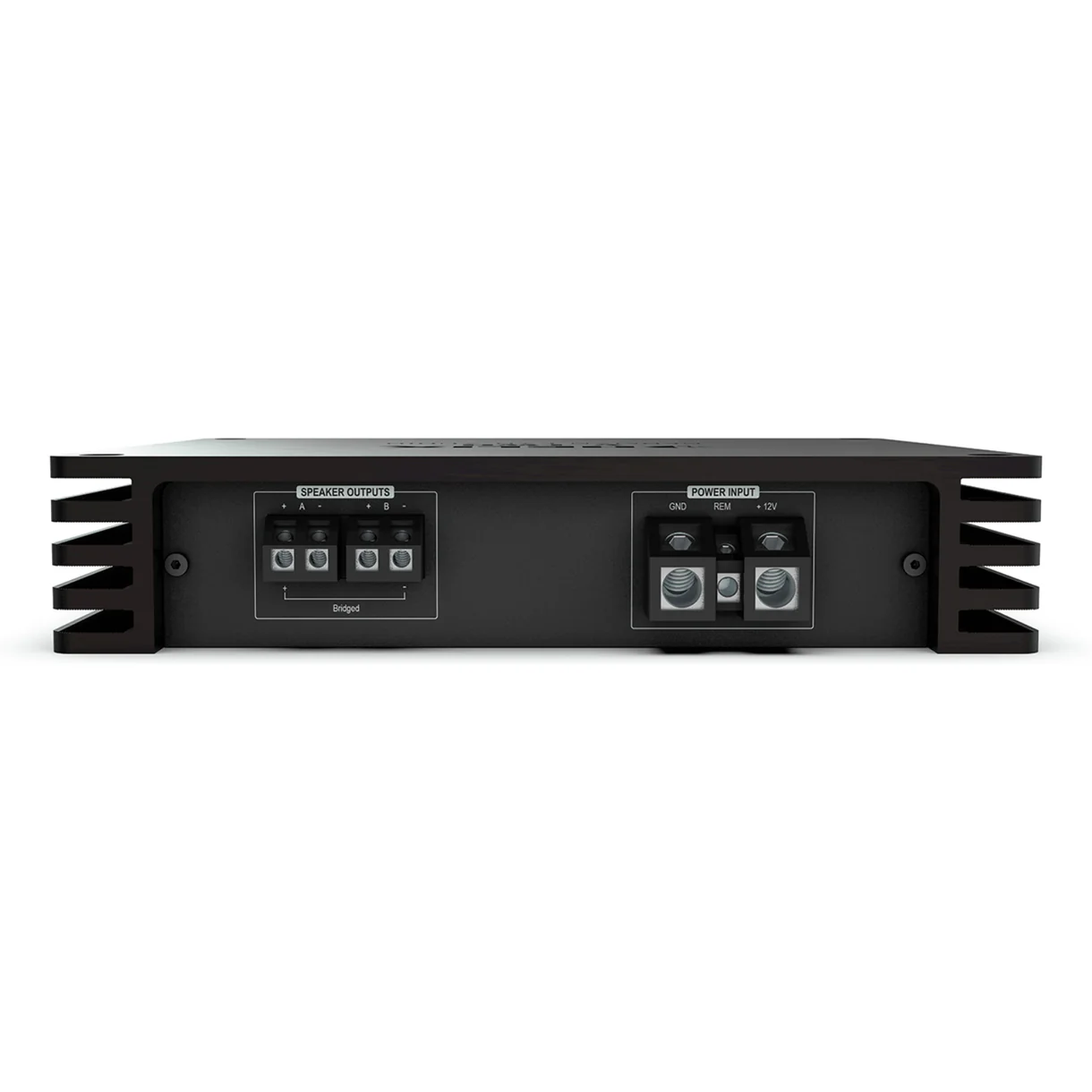

• 2 x Speaker outputs
Frequency Response
• 10 Hz – 22 kHz
Signal-to-noise Ratio (A-weighted)
• 109 dB
Distortion
• THD @ 1 kHz, 1 W, 4 Ω: < 0.003%
• THD+N @ 1 kHz, 1 W, 4 Ω: < 0.004%
Damping Factor
• 350
Operating Voltage
• 10.5 – 18 V (down to 6 V for up to 5 seconds)
Idle Current
• 1.4 A
Fuse
• 3 x 30 A LP-Mini (APS)
Power Rating
• DC 12 V ⎓ 86 A max
Temperature Range
• –40°C to +70°C
Extra Features
• Auto-Gain Ranging
• Mono / Stereo Mode
• Start-Stop compatibility
• V-AMP Link
• Regulated power supply
Dimensions (H x W x D)
• 44 x 220 x 180 mm
• 1.73 x 8.66 x 7.09 in
• HELIX NEXT V TWO amplifier
• Allen key
• Fuse
• Mounting hardware
• User manual
• 2-year warranty
