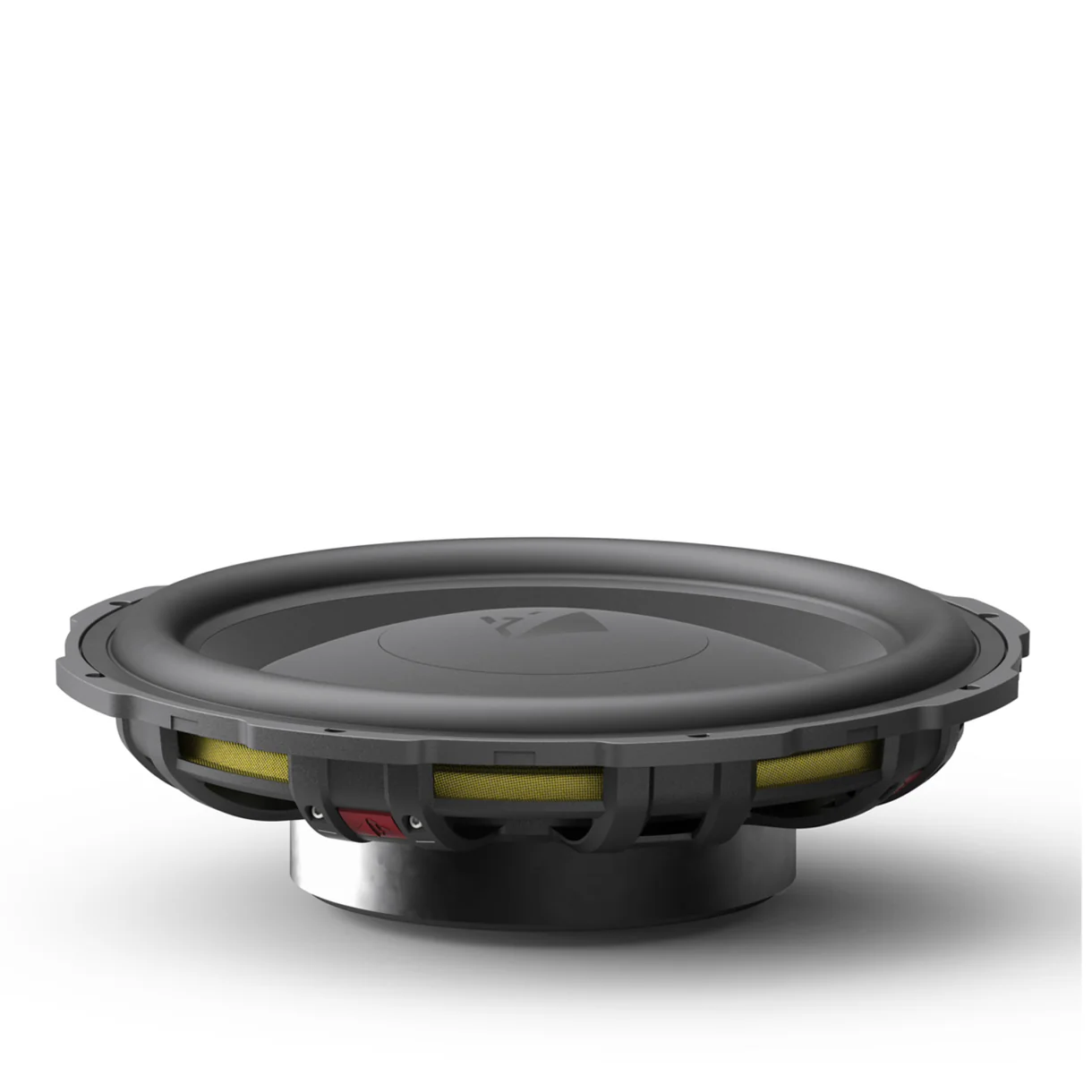

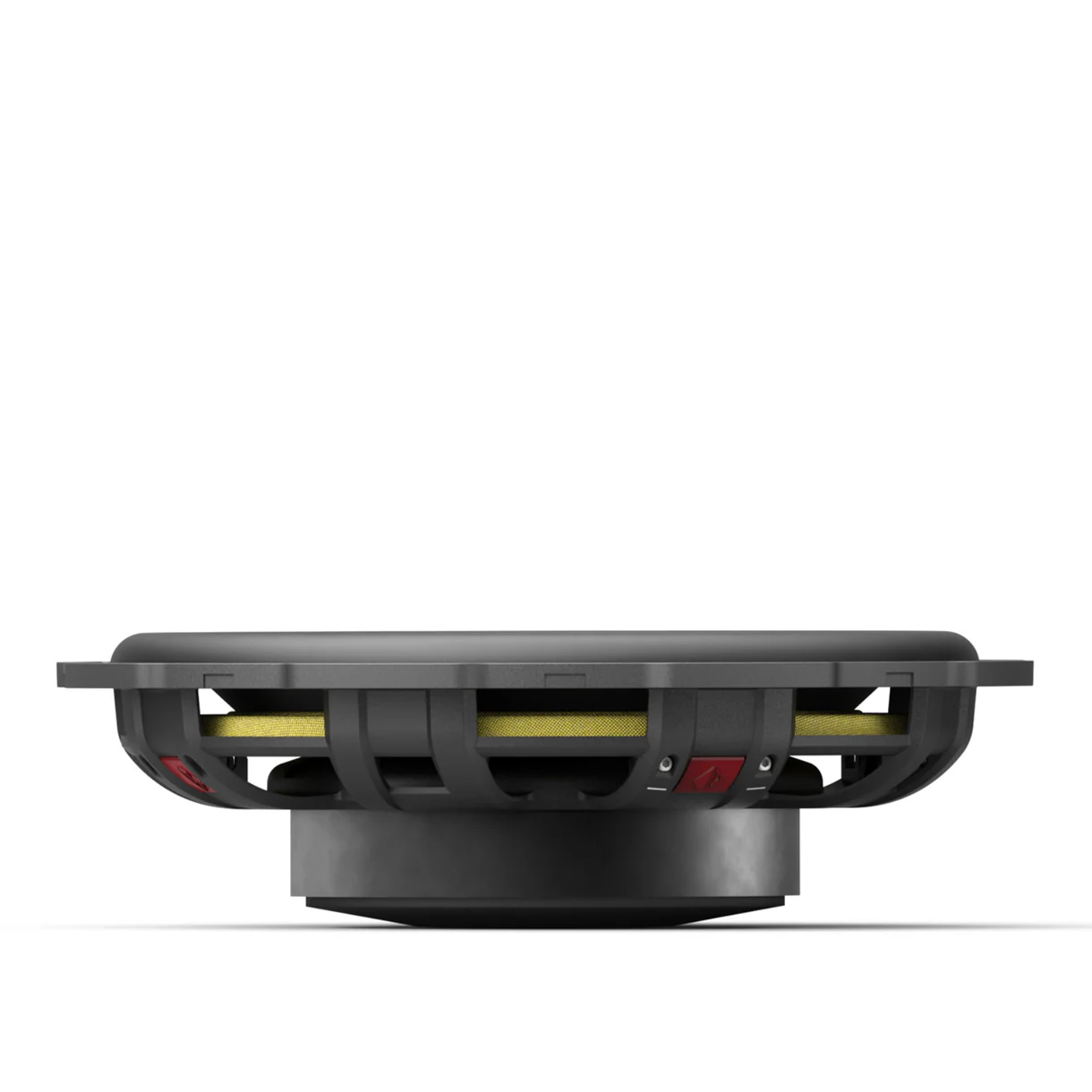

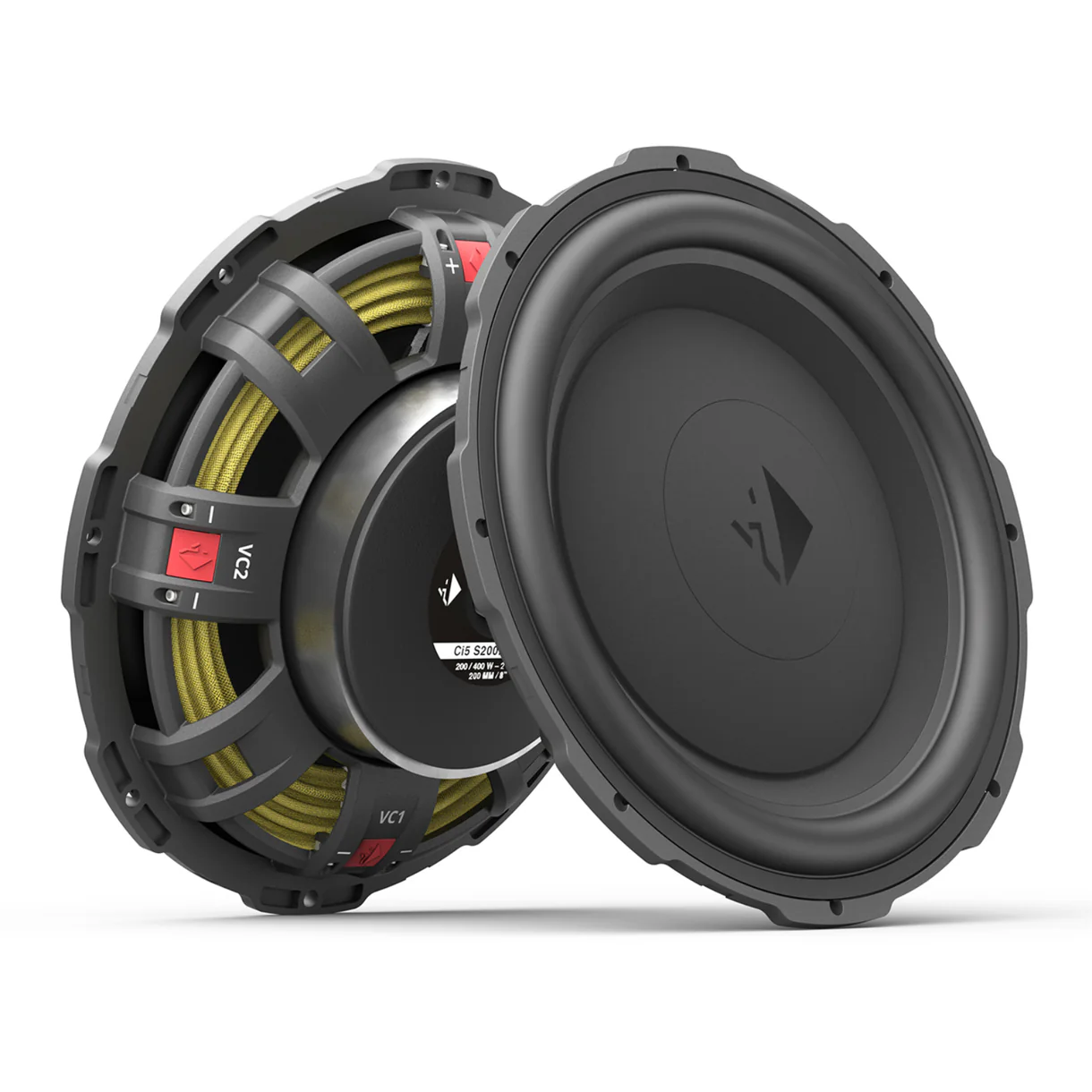

Helix Compose i5 Ci5 S200FM-D2 Woofer 8 Inch FlexMount Hybrid Subwoofer 200w RMS
Original price was: £299.99.£254.99Current price is: £254.99.
Description
HELIX Ci5 S200FM-D2 – Hybrid Mid-Woofer with Dual Voice Coils
The HELIX Ci5 S200FM-D2 from the COMPOSE series is designed for car audio enthusiasts who seek both high performance and installation flexibility. This 200 mm hybrid speaker merges the clarity of a mid-woofer with the deep output of a subwoofer, providing a precise and powerful listening experience in any vehicle. Its compact 47 mm installation depth allows integration in tight spaces, such as under-seat BMW or Mercedes bulkhead applications, without sacrificing sound quality.
Key Features and Advantages:
-
Hybrid performance: Delivers the midrange precision of a woofer combined with subwoofer-level bass control.
-
High excursion capability: ±7.5 mm linear excursion ensures accurate low-frequency output even at high volumes.
-
Compact design: Extremely low installation depth for easy integration in constrained vehicle spaces.
-
Dual 2 Ω configuration (D2): Ideal for multi-amplifier setups, providing maximum flexibility in mono, 2-channel, or multi-channel systems.
-
Robust basket construction: Made of a high-tech polymer composite reinforced with glass spheres for minimal resonance, thermal resistance, and compact dimensions.
-
FlexMount200 compatibility: Special adaptor rings allow universal speakers to fit acoustically optimized in a wide range of vehicles.
-
High efficiency: Optimized for powerful output and dynamic response with HELIX and MATCH amplifiers.
-
Non-destructive connectivity: Compatible with HELIX WireKits for fast, secure, and safe installation.
The Ci5 S200FM-D2 is engineered for audiophiles who want the best of both worlds—a hybrid speaker that provides exceptional midrange clarity and powerful bass, while maintaining flexibility for professional installation. Its combination of advanced materials, precise engineering, and versatile design ensures consistent high-fidelity performance in any automotive environment.
Specification
Part Number: Ci5 S200FM-D2
- Exceptional cone excursion – ensures high sound pressure levels and impressive low-frequency reproduction
- Hybrid flat woofer concept – a perfect balance between a powerful subwoofer and a mid-woofer driver that covers a frequency range from 25 to 500 Hz
- Flexible connection – chassis with 2 x 2 Ohms dual voice coil always offering the right solution for every amplifier configuration to achieve maximum performance
- Minimum installation depth – an innovative basket design with only 47 mm installation depth for the use in restricted mounting spaces
- Compact dimensions with maximum performance – despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis
- Lightweight polypropylene cone which provides essential stiffness for phenomenal sound performance
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
- Powerful magnet system for high efficiency and optimum impulse response
- Perfect for difficult applications – e.g. can be installed under the seats in various
- BMW models or as front subwoofer in Mercedes cars
- FlexMount200 technology – Designed car-specific adapters, which allow acoustically-optimized and professional integration in the original installation positions of under-seat and bulkhead loudspeakers
-
Power handling RMS / Max. P
-
200 / 400 Watts
-
Impedance Z 2 x 2 Ω
-
DC resistance Re 3.6 Ω
-
Frequency response 25 Hz – 500 Hz
-
Resonance frequency Fs 55 Hz
-
Mechanical Q factor Qms 8.31
-
Electrical Q factor Qes 0.88
-
Total Q factor Qts 0.80
-
Compliance Cms 256 µm/N
-
Equivalent air volume Vas 13.5 L
-
Force factor B*I 6.7 Tm
-
Sensitivity SPL 90 dB @ 2.83 V / 1m87 dB @ 1W / 1m
-
Cone area Sd 194 cm²
-
Moving mass Mms 32 g
-
Cone material Injected polypropylene
-
Mechanical resistance Rms 1.39 kg/s
-
Voice coil diameter ø 38 mm
-
Voice coil winding height 20 mm
-
Max. linear excursion Xmax +/- 7.5 mm
-
Outer diameter ø 195 mm / 7.68″
-
Installation diameter ø 173.5 mm / 6.83″
-
Installation depth 47.0 mm / 1.85″
-
Features FlexMount200
Compatibility
- FlexMount200
What’s Included
2 Year Warranty
- 2 x Ci5 S200FM-D2
- 2 x Mounting material
