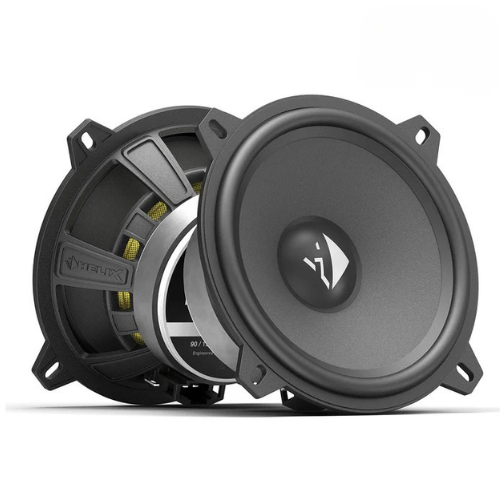

Helix Compose Ci3 W130-S3 – 5.25″ Woofers – 3 Ohms

Description

HELIX Ci3 W130-S3

HELIX COMPOSE. Premium sound for any setup.
Engineered to meet the demands of modern vehicles, this series represents a refined redesign of universal speaker systems. The HELIX COMPOSE platform combines advanced materials, precise engineering, and practical design to deliver high efficiency, clear sound, and dynamic performance suitable for any vehicle.

Price-Performance Highlight
The i3 series delivers excellent sound quality at an affordable price. High-quality components and smart engineering ensure reliable performance. All speaker impedances are optimized for use with HELIX and MATCH amplifiers for consistent maximum output.

High Efficiency
3 Ohm technology enhances efficiency and sound pressure while harmonizing perfectly with compatible amplifiers.

Cenosphere Paper Cone
Hollow spheres embedded in a polyamide coating improve cone stiffness and internal damping. This produces a stable yet lightweight cone for precise and detailed sound reproduction.

High-Tech Polymer Basket
The basket is made from polymer composite reinforced with glass beads, ensuring rigidity with minimal resonance. It reduces distortion, resists thermal stress, and allows for compact installation in tight spaces.

ProConnect Terminal
The ProConnect terminal provides a reliable connection for standard speaker cables or flat plugs via WireKits. Connections are interlocked, reverse-polarity protected, and designed to withstand mechanical and electrical stress.

WireKits – Plug & Play
WireKits allow simple connection to the vehicle’s original wiring harness or crossover. Built to automotive standards, they ensure convenient, durable installation even in demanding conditions.

Features

• 5.25” / 130 mm midbass driver combining efficiency with clear sound

• 3 Ohm technology for optimized amplifier output

• Cenosphere-coated paper cone for precise and detailed sound

• Reinforced polymer basket for rigidity and low resonance

• Rubber surround for linear cone excursion

• Polyurethane dustcap for improved midrange clarity

• 1” / 25 mm voice coil for high power handling

• ProConnect terminal for fast, secure, and flexible wiring

• Powerful magnet system for high efficiency and accurate impulse response

• Supports optional car-specific WireKits for non-destructive integration

  Technical data

  Power handling RMS / max.	P	90 / 135 Watts
  Impedance	Z	3 Ω
  DC resistance	Re	3.1 Ω
  Frequency response		80 Hz – 4,000 Hz
  Resonance frequency	Fs	89 Hz
  Mechanical Q factor	Qms	3.11
  Electrical Q factor	Qes	0.97
  Total Q factor	Qts	0.74
  Compliance	Cms	350 µm/N
  Equivalent air volume	Vas	4.6 L
  Force factor	B*I	4.0 Tm
  Sensitivity	SPL	91 dB @ 2.83 V / 1m 87 dB @ 1W / 1m
  Cone area	Sd	98 cm²
  Moving mass	Mms	9.1 g
  Cone material		Paper with Cenosphere coating
  Mechanical resistance	Rms	1.65 kg/s
  Voice coil diameter	ø	25 mm
  Voice coil winding height		10.5 mm
  Max. linear excursion	Xmax	+/- 3.2 mm
  Outer diameter	ø	130 mm / 5.12″
  Installation diameter	ø	116.5 mm / 4.59″
  Installation depth		55.4 mm / 2.18″
  Features		ProConnect terminal

  Compatibility

  • Wirekits
