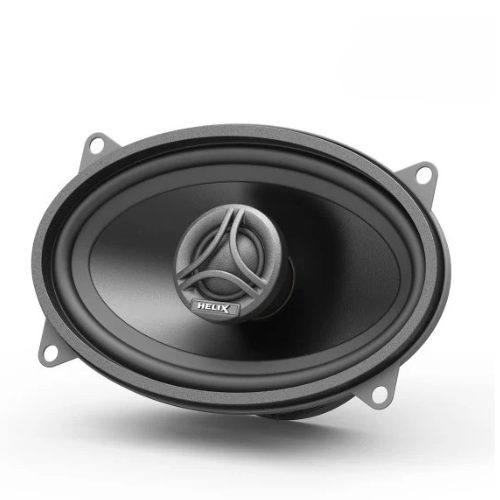

Helix Compose CB C460.2-S3 – 4″x6″ Coaxial Speakers

HELIX CB C460.2-S3

Overview

A high-efficiency 2-way coaxial speaker system that delivers clear, dynamic, and balanced sound performance. The HELIX COMPOSE series combines practical design with modern technology to provide a strong upgrade solution for car audio systems, ensuring excellent sound quality and smooth installation across various vehicles.

Essential sound performance

The BASIC component systems are designed to offer everything needed for an enjoyable listening experience. Each part works in harmony to deliver accurate and powerful sound reproduction. When paired with HELIX or MATCH amplifiers, the result is consistent performance and efficient power handling.

High efficiency

Engineered with 3 Ohm technology, this system delivers greater amplifier performance and improved sound output. The optimized impedance allows for a noticeable boost in sound pressure and clarity without distortion.

Powerful and controlled bass

The midbass driver is built for both strength and responsiveness. Its lightweight polypropylene diaphragm ensures accurate and punchy bass, while the steel basket includes additional ventilation for improved heat management. The strong magnet system enhances impulse response, and the soft polyurethane dustcap helps maintain a smooth frequency transition.

Refined high frequencies

The 0.75” (20 mm) tweeter features a coated silk dome paired with a neodymium magnet, producing detailed, natural, and distortion-free treble. It ensures high efficiency and a balanced sound across all frequency ranges.

Features

• 2-way coaxial speaker system with clear and balanced sound output

• 3 Ohm impedance for higher amplifier efficiency and sound pressure

• Compact design for easy installation in limited spaces

Tweeter

• 0.75” / 20 mm coated silk dome tweeter for accurate high-frequency response

• Neodymium magnet ensures strong magnetic flux and linearity

Midrange

• 4” x 6” / 100 x 150 mm midbass with lightweight polypropylene cone for natural tone and durability

• Steel basket with ventilation holes for better heat dissipation and higher power handling

• Robust magnet system ensures tight, responsive bass

Crossover

• Integrated crossover with 6 dB slope for smooth frequency distribution

  Technical data

  Power handling RMS / Max.	P	50 / 75 Watts
  Frequency response		90 Hz – 22,000 Hz
  Impedance	Z	3 Ω
  Sensitivity	SPL	90 dB @ 2.83V / 1m 86 dB @ 1W / 1m
  Outer diameter	ø	153.5 x 97.5 mm / 6.04 x 3.84”
  Installation diameter	ø	141.9 x 86.9 mm / 5.58 x 3.42”
  Installation depth		48.9 mm / 1.93”
  Midwoofer
  Impedance	Z	3 Ω
  DC resistance	Re	3.1 Ω
  Resonance frequency	Fs	120 Hz
  Mechanical Q factor	Qms	6.18
  Electrical Q factor	Qes	1.14
  Total Q factor	Qts	0.96
  Compliance	Cms	204 μm/N
  Equivalent air volume	Vas	1.7 L
  Force factor	B*l	4.2 Tm
  Cone area	Sd	77 cm2
  Moving mass	Mms	8.7 g
  Mechanical resistance	Rms	1.06 kg/s
  Voice coil diameter	ø	25 mm
  Voice coil winding height		8.9 mm
  Max. linear excursion	Xmax	+/- 2.5 mm
  Tweeter
  Voice coil diameter	ø	20 mm
  Features
  Tweeter		Silk dome and neodymium magnet
  Midbass		Injected polypropylene cone
  Crossover		Integrated, 6 dB highpass
