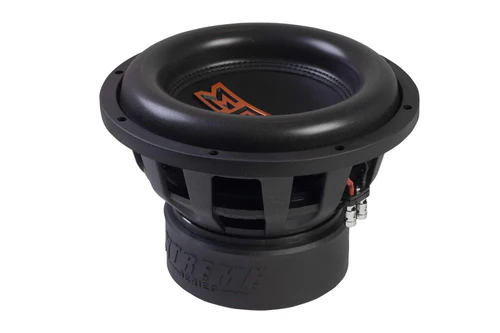

EDGE EDX12D2-E3 – 12″ Subwoofer
£299.99
Description
Description
Features
- Non pressed paper cone
- Wide roll dual foam surround
- High quality Y35 triple stacked Ferrite magnets
- 76mm USA built 4 layer flat wound voice coil
- Model: EDX12D2-E3
- Cone: Non pressed paper cone
- Surround: Big roll foam – dual stitched
- Voice Coil Former: 3″ Black Aluminium
- Spider: 3pcs Black PC
- Gasket: Rubber
- Top Plate: 15mm Black anodized
- T-Yoke: 15mm Black anodized flat

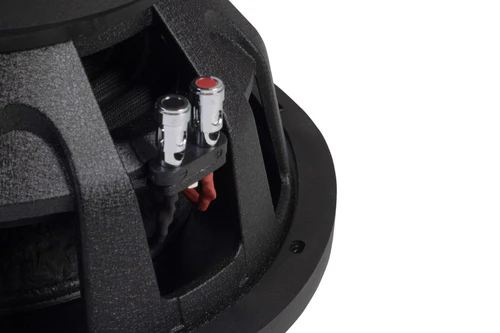

- Terminal / Wire: Spring loaded connectors
- Impedance: Dual 2 Ohms
- RMS Power:Â 2000 watts
- Vented Enclosure Volume: 1.5-2cuft
- Equivalent Volume – Vas: 20.2L
- Free Air Resonance – Fs: 33Hz
- Mechanical Factor – Qms: 6.238
- Electrical Factor – Qes: 0.529
- Total Factor – Qts: 0.488
- Moving Mass – Mms: 338g
- Compliance – Cms:   67.19μ M/N
- BI Factor – BI: 21.97 T
- Voice Coil Inductance – Le:Â Â Â 158Â mH
- Diaphragm Area – Sd:Â Â Â 459CM2
- DC Resistance – Re:   2*1.8 Ω
- SPL: 84dB
- Magnet: 190mm x 95mm x 20mm 3pcs
- Overall Diameter: 286mm
- Mounting Depth: 196mm
