EDGE EDX10D2-E3 – 10″ Subwoofer
Original price was: £249.99.£199.99Current price is: £199.99.
Description
Features
- Non pressed paper cone
- Wide roll dual foam surround
- High quality Y35 triple stacked Ferrite magnets
- 76mm USA built 4 layer flat wound voice coil
Specification
- Model: EDX10D2-E3
- Cone: Non pressed paper cone

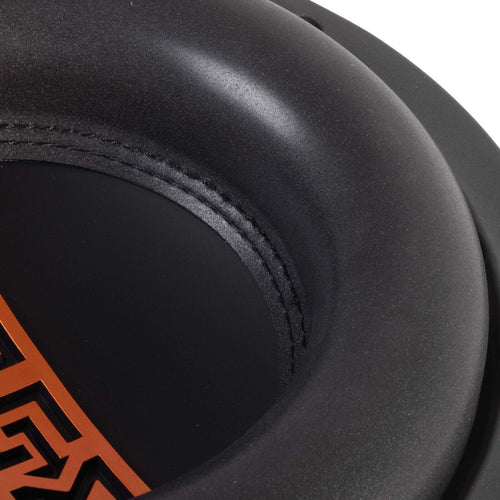

- Surround: Big roll foam – dual stitched
- Voice Coil Former: 3″ Black Aluminium
- Spider: 2pcs Black PC
- Gasket: Rubber
- Top Plate: 8mm Black anodized
- T-Yoke: 10mm Black anodized flat

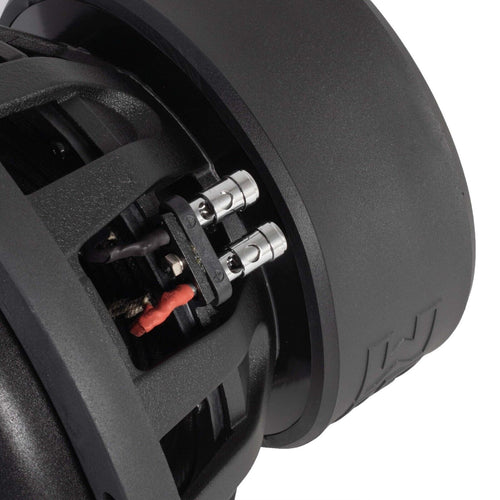

- Terminal / Wire: Spring loaded connectors
- Impedance: Dual 2 Ohms
- RMS Power: 1500 watts
- Peak Power: 3000 watts
- Enclosure Volume: 1-2cuft
TS Parameters
- Equivalent Volume – Vas: 13.3L
- Free Air Resonance – Fs: 32Hz
- Mechanical Factor – Qms: 5.069
- Electrical Factor – Qes: 0.389
- Total Factor – Qts: 0.362
- Moving Mass – Mms: 218g
- Compliance – Cms:   107.3μ M/N
- BI Factor – BI: 20.42 T
- Voice Coil Inductance – Le:Â Â Â 110Â mH
- Diaphragm Area – Sd:Â Â Â 295CM2
- DC Resistance – Re:   2*1.8 Ω
- SPL: 83dB
Installation
- Magnet: 190mm x 95mm x 20mm 3pcs
- Overall Diameter: 234mm
- Mounting Depth: 170mm
Introducing from EDGE the Xtreme series subwoofers, for those looking for deep, high power, street thumping bass our subwoofers are for you, multiple models and sizes available complete with a brand new range.
Our Xtreme Series subwoofers were designed with a combination of street bass and competition bass in mind. All the subwoofers feature massive triple stacked motor structures across 3 basket types all constructed from cast Aluminium for strength and rigidity. Paired with Polycotton spiders, stitched tinsel leads, non-pressed paper cones and 3-inch voice coils we have a variant of power and sizes available. New for 2023, featuring a brand new custom tooled basket for increased excursion on the low bass and an even wider foam surround to cope with this excursion! This is paired with our brand-new custom tooled 2-piece dust cap giving us a unique subwoofer!
If Pushing the limits of excursion and SPL our Xtreme series subwoofers have been designed with you in mind!
