Audi A4 (2001-2008) Kenwood CarPlay Android Auto Digital Media AV Receiver Bluetooth DAB+ Stereo Upgrade Pack

Description

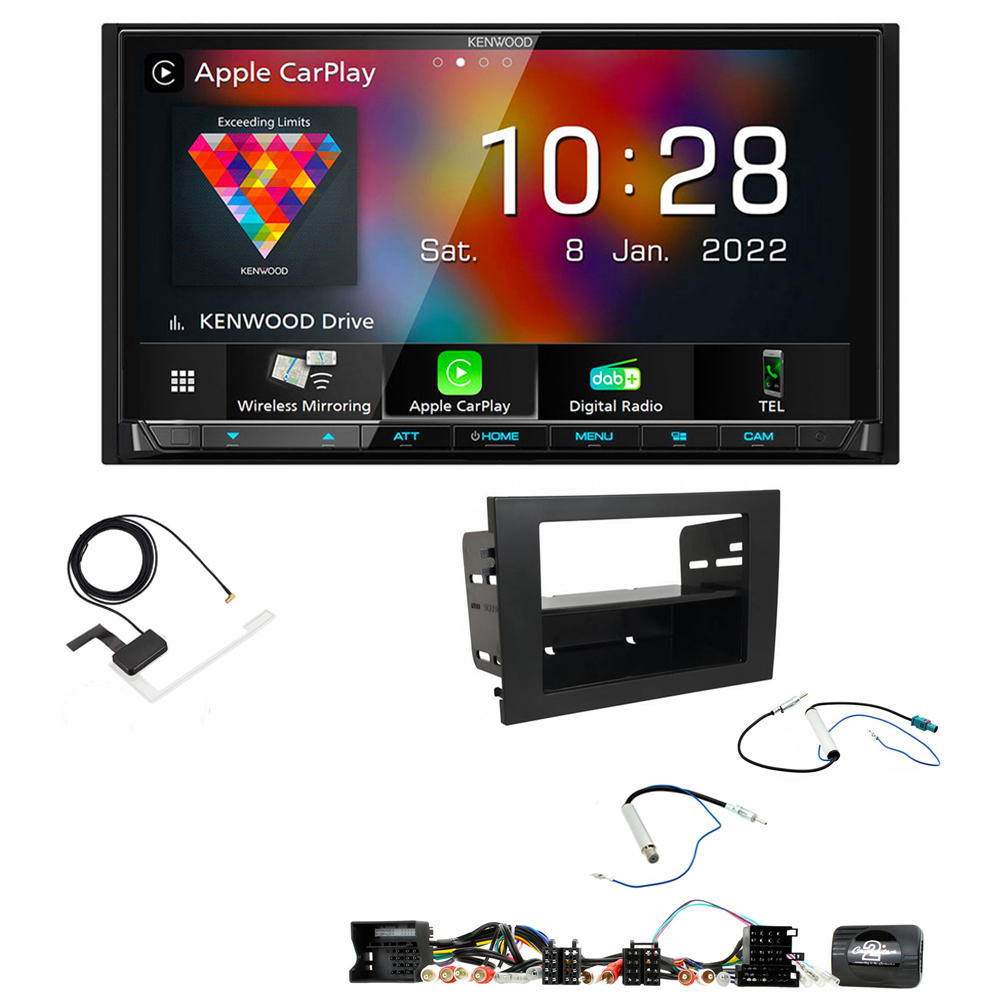

Package Includes

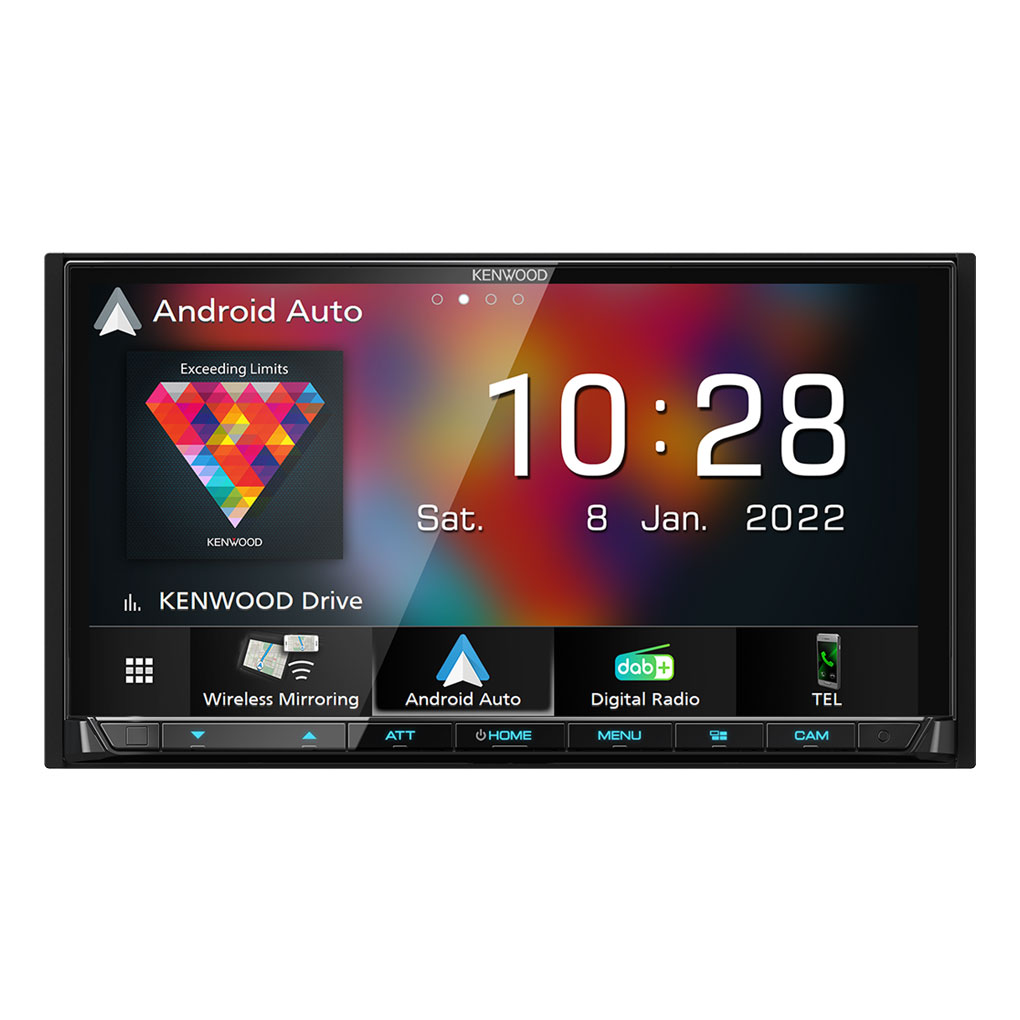

• Kenwood DMX8021DABS Digital Media AV Receiver with Apple CarPlay, Android Auto, Bluetooth and DAB+ Digital Radio

• DAB Antenna Aerial

• Single / Double DIN Fascia Kit (Black)

• CAN-Bus Steering Wheel Control Adaptor

• Aerial Adaptors (Quadlock & ISO Looms)

• Stereo Patch Lead

Vehicle Compatibility

Make: Audi
Model: A4
Years: 2001 – 2008

Notes:
Aftermarket head unit must have RCA audio output connectors. OEM-specific connection required.
Suitable for non-amplified, half-amplified, or BOSE amplified systems.
Not compatible with vehicles equipped with a digital amplifier.

Product Overview

By connecting your smartphone to the DMX8021DABS wirelessly or via USB, you can enjoy a safer and more convenient driving experience. Apple CarPlay™ and Android Auto™ provide intuitive control for calls, navigation, music, and apps, while True Mirroring allows you to display and control compatible Android smartphones directly on the receiver screen.

The unit delivers enhanced sound performance through a 13-band Graphic Equaliser and Digital Time Alignment. Multiple camera inputs support greater convenience, flexibility, and safety when driving and parking.

Key Features

• 7.0″ WVGA capacitive touch panel with sharp visuals, vivid colours, and wide viewing angles

• Built-in Wi-Fi for wireless smartphone connectivity

• DAB/DAB+ digital radio for clear, interference-free reception

• Bluetooth wireless technology for hands-free calls and music streaming

• Wireless and wired Apple CarPlay and Android Auto support

• Wireless Android mirroring with two-way touch control

• Support for up to four camera inputs

• 3 x RCA high-power pre-outs (Front / Rear / Subwoofer) at 5.0V

• Hi-Res Audio compatibility for improved sound clarity and detail

• Digital Sound Processor with Time Alignment and 13-Band EQ

• Rear USB-C port with up to 3.0A fast charging

• Short body design (85mm) for easier installation

General Features

• 2 DIN size

• User-set security code function

• Smooth and customisable GUI

• Selectable background wallpapers

• Variable key illumination colour

• Installer and back-up memory

• Attenuator with smooth volume return

• Built-in Bluetooth and DAB tuner

• Wireless and wired Apple CarPlay and Android Auto

• Wireless Android mirroring

• Firmware upgradable via USB

• HDMI input for video playback

• Dashcam link support

• GPS and GLONASS antenna input included

Monitor Features

• 7.0″ Wide VGA display

• Display modes: Full (default), Auto, Normal

• Screen adjustments: brightness, tint, colour, contrast, black level, backlight

• Day and night memory

• Manual and sync dimmer function

• Capacitive touch panel with glare display

• Anti-fingerprint, anti-reflection, anti-glare display film

• Adjustable LCD viewing angle

• NTSC/PAL auto detection

Multimedia GUI Features

• Menu language support (22 languages)

• Customisable top menu and widgets

• Spectrum analyser and animation effects

• Picture-in-picture function

• Screen capture support

• Rear camera interruption with parking guidelines and caution display

• Front camera and dashcam control

• Rapid charge indicator

Network and Wi-Fi Features

• Built-in dual-band Wi-Fi (2.4GHz / 5GHz)

• IEEE 802.11 a/b/g/n/ac support

• Wireless connectivity for Apple CarPlay, Android Auto, and Android mirroring

Radio and Tuner Features

• FM (RDS) and AM (MW/LW) tuner

• Presets: FM 15 / AM 5

• Automatic and manual tuning modes

• Traffic information and radio text support

• DAB+ digital tuner with intelligent seek, service list, alphabet search, and seamless DAB-FM blending

• Dynamic Label Segment (DLS) and programme type search

Bluetooth Features

• High-quality hands-free calling (HFP v1.7)

• Dual phone connection support

• A2DP audio streaming with SBC/AAC

• Phonebook access with alphabetical search

• Noise and echo cancellation

• High-quality wired microphone included

Media Playback

Audio formats: MP3, WMA, AAC, WAV, FLAC
Video formats: MPEG-1/2/4, WMV, H.264, MKV
Image formats: JPEG, BMP, PNG

USB features include tag information display, album art, category search, repeat/random play, and resume playback.

iPod and iPhone Features

• Made for iPod and iPhone

• USB direct control with optional cable

• Album art and music library search

• Siri voice control

• Bluetooth auto pairing

• Charging and power control

Audio Performance

• Maximum output power: MOSFET 4 x 50W

• 3 RCA pre-outs (Front / Rear / Subwoofer)

• 5V pre-out output level

• 13-Band Graphic Equaliser

• Digital Time Alignment

• Loudness, bass boost, and DSP sound effects

• 2-zone audio control

Connectivity

• USB-C interface (rear, detachable)

• OEM wired steering wheel control ready (optional interface required)

• Multiple camera inputs (rear, front, dashcam)

• HDMI input

• GPS, FM, and DAB antenna inputs

• External microphone input

Technical Summary

• Apple CarPlay: Supported (Wireless & Wired)

• Android Auto: Supported (Wireless & Wired)

• DAB Radio: Yes

• Rear Camera Input: Yes

• Screen: 7.0″ WVGA Capacitive Touch Panel

• Size: Double DIN

• Max Power Output: MOSFET 4 x 50W

• Tuner: FM/AM with built-in DAB+

• Bluetooth: Built-in

• USB: Rear USB-C, up to 3.0A fast charging

• Pre-Outs: 3 x RCA (Front / Rear / Subwoofer, 5V)
